Advanced imaging allows the capture of very fast-moving events with exposure times as low as 20ns. We offer four different system voltages — 150, 300, 450 and 1,200 kilovolts (1.2 megavolts).

Flash X-ray Systems

Systems can be set to fired at voltages and use different X-ray tube types to capture images of a wide variety of materials and thicknesses.

Systems can be set to fired at voltages and use different X-ray tube types to capture images of a wide variety of materials and thicknesses.

MAJOR FEATURES

These systems include 150 kV, 300 kV, 450 kV, and 1.2 MV pulsers.

The X-ray tube can be mounted in the pulser or a remote demountable head in seconds

Control consoles come in a standard, 19-inch rack-mount.

X-ray pulse widths (FWHM):
70 ns for 150 kV pulsers
20 ns for the 300 kV, 450 kV, and 1.2 mV pulsers.

X-RAY TUBE ADVANTAGES

X-ray tubes are easily replaceable in seconds

Multiple spot sizes available for higher resolution needs (0.7 mm to 5 mm).

Soft and hard X-ray tubes are available for the 150kV and 300kV systems.

COMPUTED RADIOGRAPHY

Flash X-ray system use standard X-ray film cassettes and phosphorus screens.

Fisica recommends using Duur image scanner

- ScanX HC (laser spot = 50 μm)

- ScanX HR (laser spot = 14 μm)


Scan a 14” x 17” screen at 100um/pixel in under one minute.

Scanners work with Fisica’s proprietary PixelRay® digital imaging software.

AVAILABLE SYSTEMS

> 150 kV

> 300 kV single

> 300 kV dual

> 450 kV single

> 450 kV dual

> 1 mV

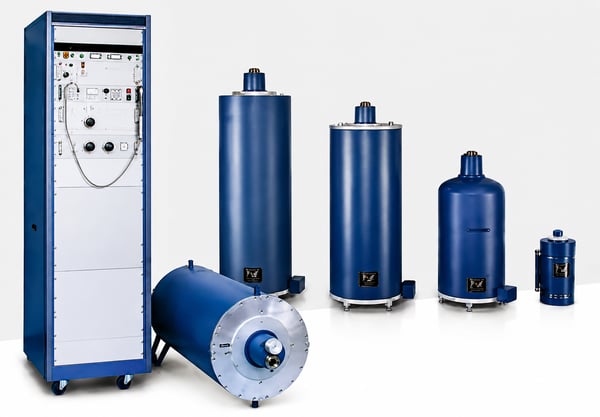

ChatGPT Image Jun 23, 2026, 08_04_34 AM

OPTIONS AND ACCESSORIES

001

Add-on 1 mV channel

008

220 Vac, 50-60 Hz

020

Added length console-to-pulser cable

032

Single remote tubehead

034

Add length tubehead cable

035

Dual remote tube heads

Special option

Demountable tube with variable source size

130-314700-#700

Computer remote control of high voltage power supply

SINGLE CHANNEL SYSTEM (STAND ALONE SYSTEM)

Control console cabinet

- AC power panel with surge protector
- High voltage power supply
- Dielectric gas pressurization controls
- XCON (X-ray controller)

Trigger transformer

Trigger pendant

FXR pulser

9m (30ft) control cable and air line bundle

X-ray tube

Resistive load

ADD-ON CHANNEL

XCON (X-ray controller)

Trigger transformer

FXR pulser

9m (30ft) control cable and air line bundle

X-ray tube

Resistive load

Resistive load

SYSTEM SELECTION

System

FTSD

Penetration in AL

Penetration in Steel

150kV

8 ft  (2.45m)

0.2 in (4mm)

0.1 in (3mm)

300kV Single

8 ft  (2.45m)

1.9 in (48mm)

0.4 in (10mm)

300kV Dual

8 ft  (2.45m)

1.1 in (28mm)

0.2 in (6mm)

450kV Single

8 ft  (2.45m)

2.7 in (67mm)

1.1 in (28mm)

450kV Dual

8 ft  (2.45m)

2.7 in (67mm)

0.7 in (18mm)

450kV Super

8 ft  (2.45m)

5.0 in (127mm)

1.6 in (40mm)

1MV

8 ft  (2.45m)

6.3 in (159mm)

2.2 in (56mm)

1MV Super

8 ft  (2.45m)

6.3 in (159mm)

2.8 in (71mm)





Available Files

Library of Datasheets

If you'd like to dive deeper into the full specifications or explore each component in detail, simply click below to view the complete set of datasheets

FXR Flash X-Ray Systems

2.77 MB

150kV

Coming Soon

300kV

Coming Soon

450kV

Coming Soon

1000kV

Coming Soon
