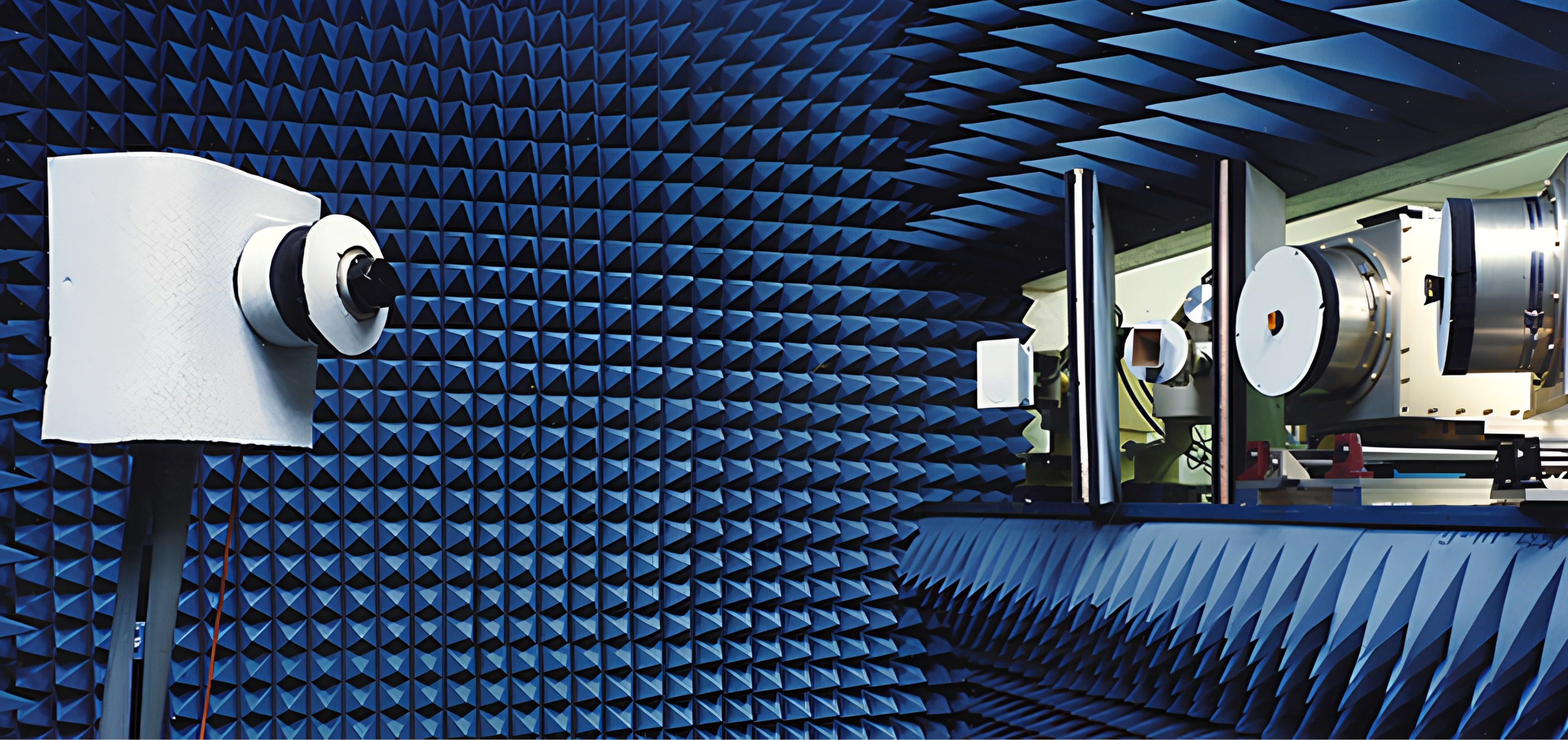

Testing anechoic chamber surrounded by foam with antennas on positioners
FISICA > RANDTRON > Antenna Testing Facilities

Antenna Testing Facilities

Antenna Production and Development testing capabilities at Randtron are typically divided into electrical RF and environmental testing:

Two pillars, one secure facility

The testing is conducted across a 3,000 sq ft canyon range, five anechoic chambers, and a compact range — covering UHF through 100 GHz, with 50 kW of transmission power and 3-axis positioners on elevators.

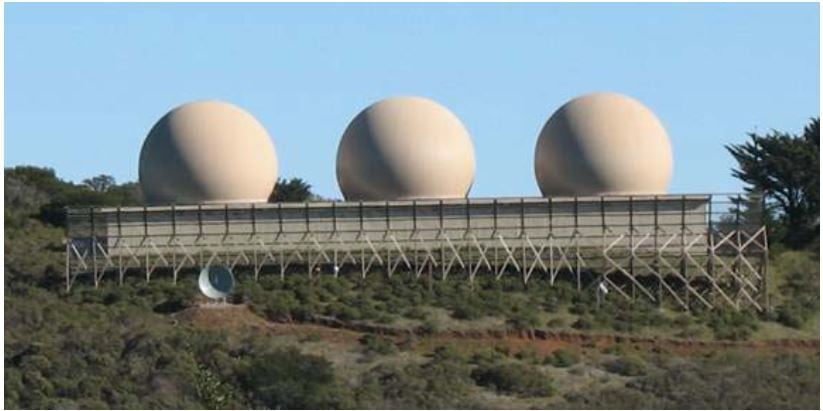

3 inflatable Radome bubbles on a hillside with wooden fence in front
PILLAR 01 • RF Testing

Measuring antenna performance from UHF to 100 GHz

Our antenna ranges provide high measurement accuracy across a wide range of frequencies and antenna types. The far-field laboratory consists of a 3,000 sq ft canyon range with a 15,000 sq ft, environmentally controlled and pressurized receiving station — accommodating antennas up to 30 ft in diameter and 20,000 pounds, including E-2C Hawkeye, E-2D Advanced Hawkeye, and E-3 Sentry AWACS. Five anechoic chambers and a compact range round out the suite for full RCS, gain, and pattern measurement.

Far-Field Range

3,000 sq ft canyon range, three remote-operated test stations, two transmitter stations.

Anechoic Chambers

Five chambers covering 0.5 GHz to 100 GHz with broadband amplifiers and rotating polarized horns.

Compact Range

RCS measurement and antenna gain/pattern testing in a controlled indoor environment.

RF Power & Modulation

Up to 50 kW continuous or square wave; pulse, frequency and phase modulation; UHF–S-Band.

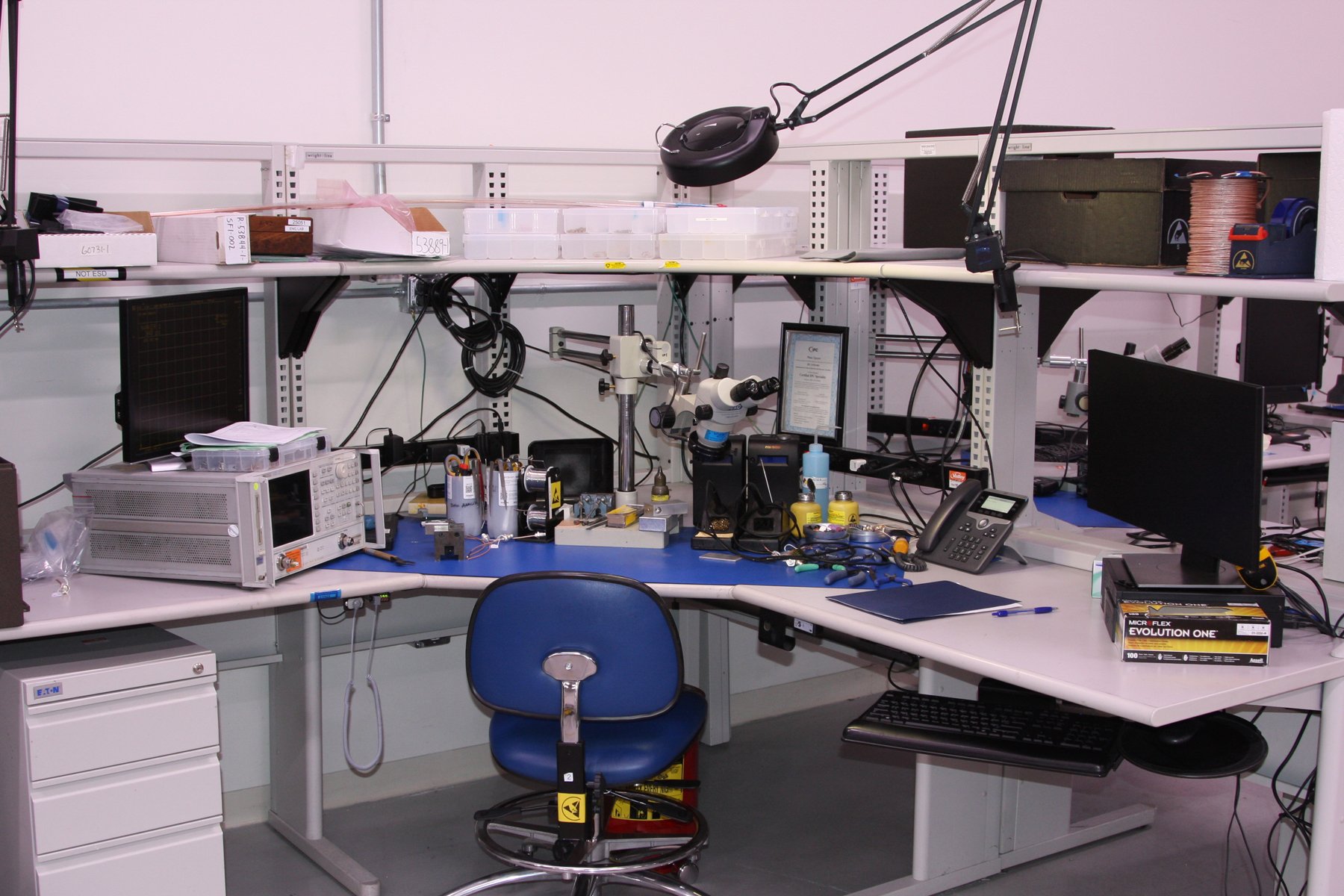

An office desk with measuring equipment surrounding the desk
Pillar 02 • Environmental testing

Qualifying hardware against the full MIL-STD-810 envelope

A secure environmental chamber houses our salt fog, temperature, altitude, tensile and vibration testing equipment. The LNG Model 540A shaker delivers 12,000 lb-force RMS vibration and 24,000 lb-force peak shock with random or sine vectors and 2-inch displacement across 5 Hz to 2,000 Hz. Temperature, altitude and humidity chambers operate from -65 °C to +150 °C, sea level to 78,000 ft, and 0–95% relative humidity.

Vibration & Shock

12,000 lb-force RMS, 24,000 lb-force peak shock, 5 Hz – 2 kHz, random or sine.

Temperature / Altitude

-65 °C to +150 °C, sea level to 78,000 ft — single or combined profiles.

Humidity & Salt Fog

0–95% RH at temps up to +150 °C; salt fog chamber meets military exposure standards.

Mechanical Loads

Tensile, shear, torque and compressive structural loads up to 20,000 pounds.
