Radiation Effects Testing Services

ATI is the operator of the Defense Threat Reduction Agency (DTRA) West Coast Facility (WCF), providing nuclear weapons effects (NWE), space effects, and R&D testing services for Government and commercial users.

Please Contact Us

For your scheduling and testing needs.

For Inquires Please Contact:

Peter Sincerny: Peter.Sincerny@fisica.com

Tyler Daykin: Tyler.Daykin@fisica.com

DEFENSE THREAT REDUCTION AGENCY (DTRA)

West Coast Facility

Five simulators provide a wide range of high dose rate X-ray and gamma ray environment testing services for U.S. customers with equipment that has U.S. Government radiation hardness requirements.

Test Services supported by Fisica technical staff include:
• Pre-test assessment of customer requirements and recommendations for the appropriate simulator
• Test object(s) and data acquisition system set up
• Simulator operation and radiation output data collection
• Providing test data to the customer

WCF Trifold

1.70 MB

Short Pulse Gamma (SPG)

• Gamma and electron beam simulator
• Produces up to 20 shots/day
• Short pulse is optimized for minimum dose to satellite electronics with high dose rate
• Low jitter command fire capable

Pulserad 1150n

• Longer pulse gamma ray simulator
• Produces up to 15 shots/day
• Can be operated in a variable pulse width mode
• Also has a high energy electron beam mode for high dose rate materials testing

Modular Bremsstrahlung Source (MBS)

• High-fidelity, warm X-ray simulator
• Produces up to 12 shots/hour
• Radiation pulse width and rise time are adjustable over limited ranges

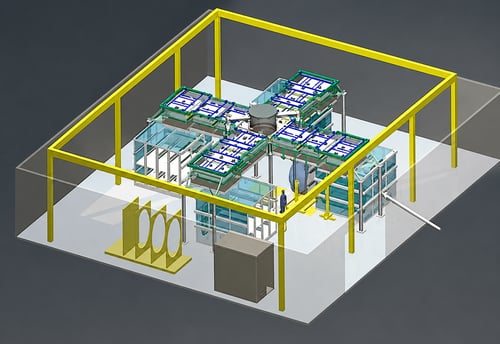

Quad Eagle

• Largest simulator at the DTRA West Coast Facility
• Nominal operation is 2 shots/day
• Very high peak electrical power
• High dose rate over a large range of test areas
• Spectral range capabilities from UV to hot X-rays
• Electron beam capabilities
• Low command fire jitter

Pithon

• Simulates warm and hot X-rays
• Produces up to 3 shots/day
• Electron beam or an ion beam mode also available

DISCLAIMER

Fisica Applied Technologies, Inc. was established in 2024 following the acquisition of the ATI, Randtron, and Datron businesses from L3Harris Technologies.

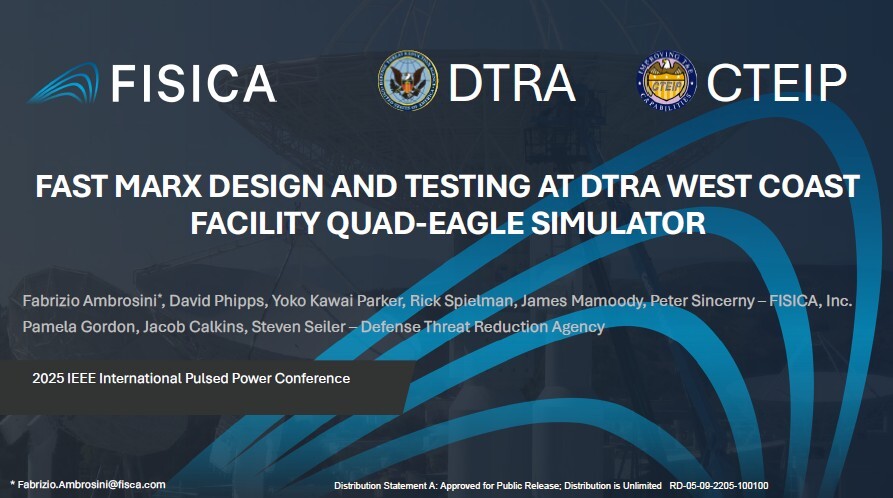

Fast Marx Design and Testing at DTRA West Coast Facility Quad-EAGLE Simulator

To view full presentation download below:

Download Here

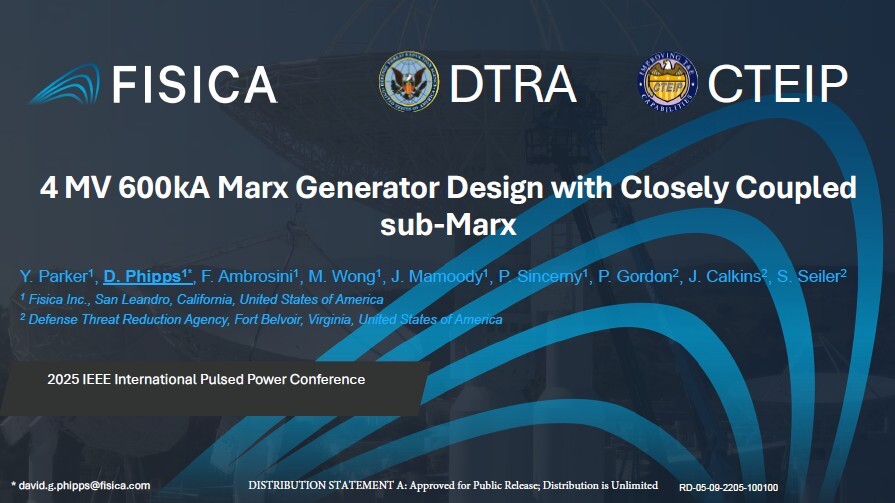

Marx Generator Design with Closely Coupled sub-Marx

To view full presentation download below:

Download Here

Gain a broader perspective on radiation testing as we connect foundational concepts and key advancements in the articles below.

Induction voltage adders and the induction accelerator family

2.66 MB

Improvement on Double-Eagle Machine Synchronization in Both Negative and Positive Modes of Operation

387 KB

History of Western Pulsed Power

2.63 MB
